SCU (Steering Control Unit)

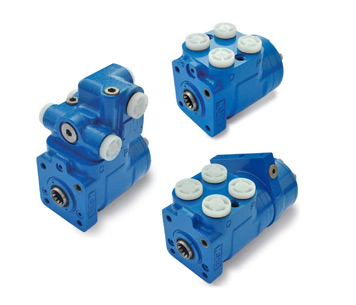

Steering Control Unit / Xcell45
Steering contorl Unit는 차량의 주행방향을 제어하는 펌프입니다.특히, Xcell45 시리즈 Steering Control Unit(SCU)는 저유량, 저압 어플리케이션을 위해 설계가 되었습니다.Xcell45 시리즈 SCU는 190bar의 연속 압력 회전이 가능하며, 건설 및 농업기계와 같은 heavy duty 장비에 이상적입니다.
Max.System Pressure 190 bar Max.System Pressure 190 bar [2755 psi]
Max. Back Pressure 35 bar Max. Back Pressure 35 bar [500 psi]
Rated Flow
50 - 125cc/r 7.5-15 LPM 50 - 125cc/r 7.5-15 LPM [2-4 GPM]
160 - 250cc/r 15-30 LPM 160 - 250cc/r 15-30 LPM [4-8 GPM]
320 - 500cc/r 30-45 LPM 320 - 500cc/r 30-45 LPM [8-12 GPM]
Input Torque
Powered Standard 1.7-2.8 Nm
Powered Low Torque 1.3-2.2 Nm
Powered Supper Low Torque <1.4 Nm
Non-powered 136 Nm
Max. System 93°C [200°F]
Operating Temperature
Max. Differential Between 28°C [50°F]
Steering Unit and Other
System Temperature
Fluid
ATF Type A
and Most Petroleum Based Fluids
See Eaton Technical Bulletin 3-401
Recommended Filtration:
ISO 20/18/13 cleanliness level
